Place of Origin:
Shanghai,China
Brand Name:
Kolon
Certification:
CE
Model Number:
KL-360 PLUS
Document:
Contact Us

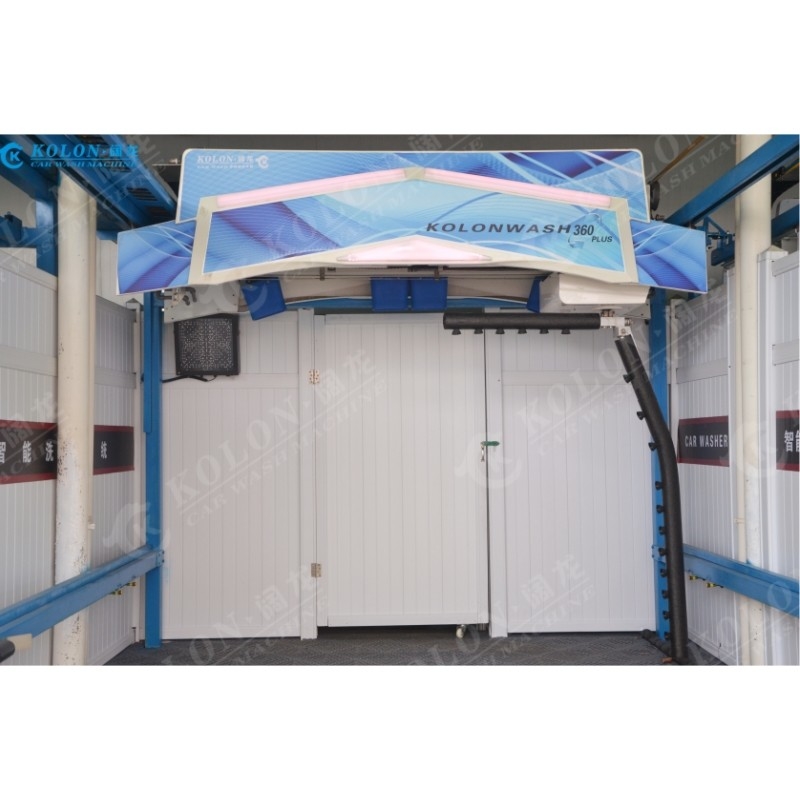

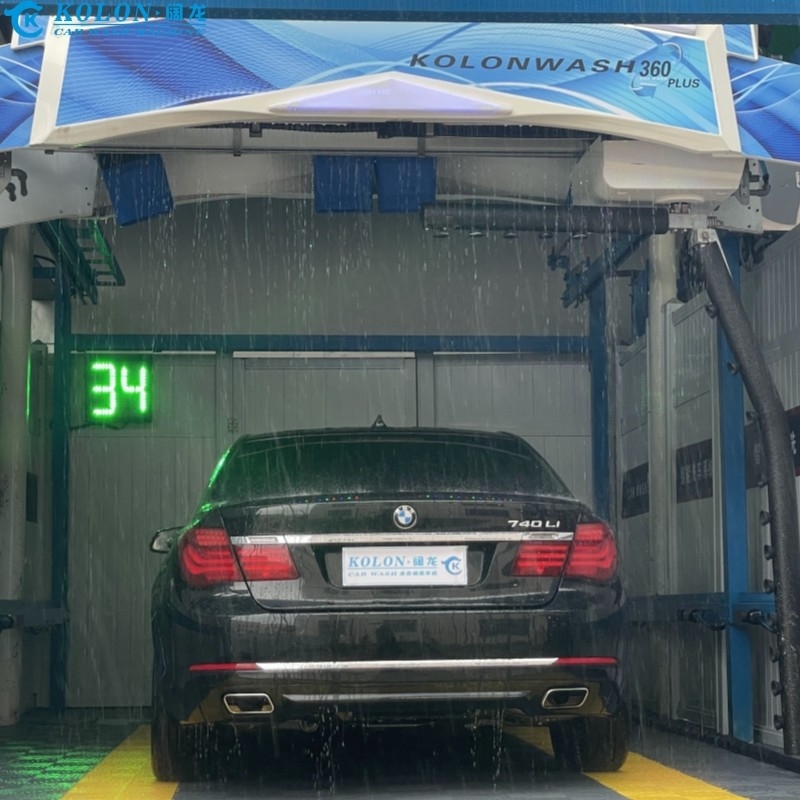

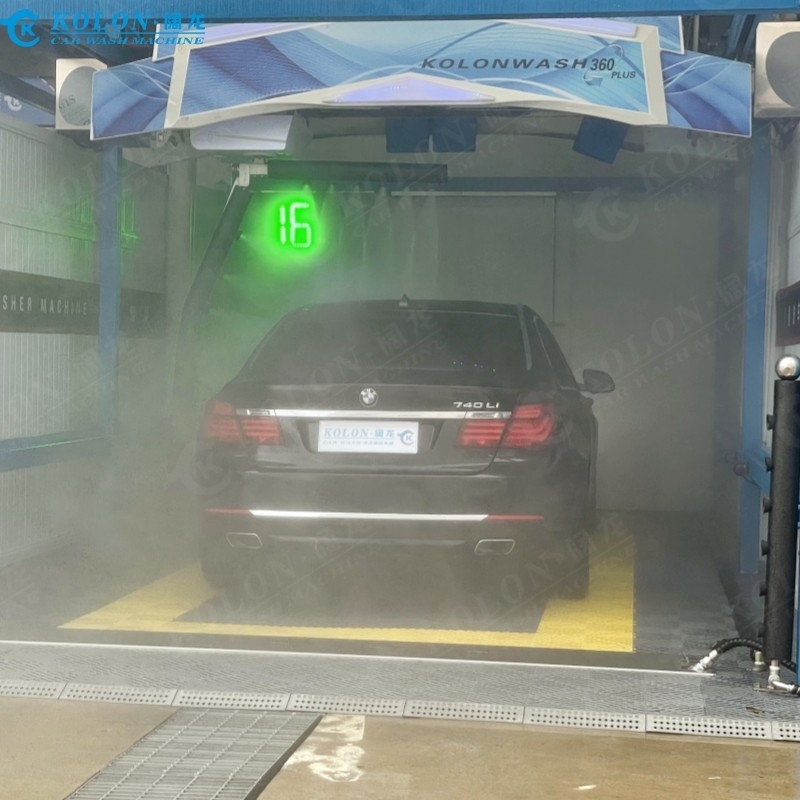

Touchless Car Washing Machine Description :
A touchless / contactless / touch-free car washing machine is a type of automated car wash system that cleans vehicles without the use of brushes or physical contact with the car's surface. It relies on high-pressure water jets, detergents, and specialized cleaning techniques to remove dirt, grime, and other contaminants from the car's exterior.
Dimension drawingKL360PLUS.pdf
Touchless Car Washing Machine Features:
Specification:
| Warranty | 3 years, man-made damage excluded |
| Machine Size | 7.5*3.8*3.35M(L*W*H) |
| Foundation Size: | 7.5* 3.8*3.4M((L*W*H) |
| Site Requirements | Ground hardening |
| Proportioning machine size | 800*450*1400mm (L*W*H) |
| Wire requirements | 3 phase 5 cores, 16 sqm copper wire |
| Air pressure | 10BAR |
| Max washing height | 2050mm |
| Max washing width | 2200mm |
| Max washing length | 5900mm |
| Power needed | 380V/30KW |
| Running power | Air-dry power 22kw( 4PCS * 5.5KW )Siemens motor |
| Water pump (Pinfl 36+22Kw Siemens motor) |
|
| Water Consumption | 200L/car |
| Washing Time | 3-8mins/car |
| Power Consumption | 1-1.5kwh/car |
| Machine weight | 2323Kg/9.8CBM |
| Total Power | 45Kw |
| Washing liquid Consumption | 70ml/car |
| Water wax consumption | 500-1000ml ,Controllable |
| Applicable vehicle type | car,van,commercial vehicle |
| Water pressure requirements | 1.4-3kgs tap-water pressure; 6-minute diameter water pipe flow >40L/min |
| Rail | 2pcs (7.5m) |
| Framework | 1 set |
| Washing pressure | 80-100KGS |
| Standard car wash mode | ● |
| Washing Quantity count | ● |
| Fine car Wash Mode | ● |
| Operation permission setting | ● |
| Fully automatic car wash mode | ● |
| Fault self-test function | ● |
| LED indicating system | ● |
| Mirror cleaning | ● |
| Automatic liquid proportioning system | ● |
| One click antifreeze system | ● |
| Chassis tire washing function | ● |
| Oil free function | ● |
| Intelligent three-dimensional detection system | ● |
| Multi liquid reuse function | ● |
| Self-guided parking system | ● |
| Safety alarm function | ● |
| Digital safety anti-collision system | ● |
| Automatic standby function | ● |
| 360 degrees rotary washing | ● |
| Hot dip galvanized frame | ● |
| Washing Detergent | ● |
| Operation console | ● |
| Highlight and dazzle color system (dazzle color type) | ● |
| Leakage protector | ● |
| Water wax coated function | ● |
| Warning system | ● |
| Magic Color Shampoo | ● |
| Voice warning system | ● |
| Built-in automatic air drying | ● |
| Soft water spray | ● |
| Controller | ● |
| Function Equipped | Chassis washing |
| Wheel washing | |
| Touchless high-pressure washing | |
| High precision low foam water wax 2-in-1 ratio function | |
| Powerful air drying |
Dimension drawing
Products Description:

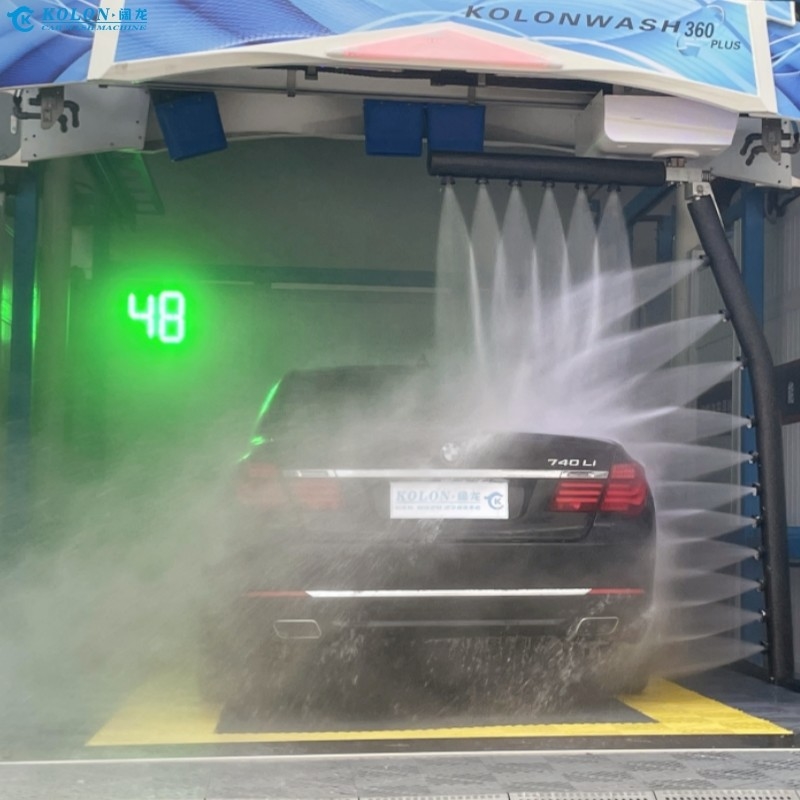

360° high Pressure water spray removes the dirt and muds on the chassis and wheels of the vehicle.
*** 7shaped arm
*** Chassis and wheel washing

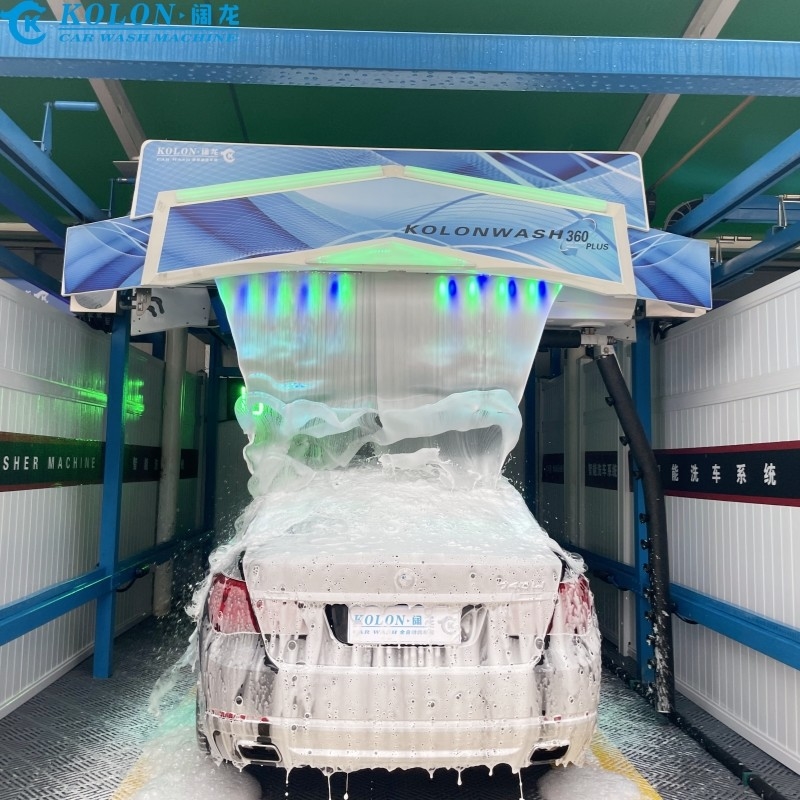

*** Washing liquid spraying(magic shapoo)
*** Wax spraying
It has a high water-repellent properties and dries quickly after being applied to the vehicle. The car stays completely dry, shiny and protected from environmental influences. The treated surface is self-cleaning after rain or when rinsing with water. The product has an antistatic effect. Works great even when using hard water and at low temperatures.
Details:
Air-dry power 33KW total,22kw( 4PCS * 5.5KW )Siemens motor
KL360 plus water pump (Pinfl 36+22Kw Siemens motor)
Touchless Car Washing Machine Benefits:
Product packaging
3 years warranty low price auto cleaning equipment car washing machine with Chassis wash function for Southeast Asia.
Packaging Show:
FAQ
Q: Are your car wash machine trader or manufacturer?
A: Yes, we are the car wash machines manufacturer in china. Our brand is Kolonwash. So we have the competitive price, and could provide the spare parts at any time.
Q: What types car wash machines can you produce?
A: We can produce the rollover car wash machine, tunnel car wash machine, touchless car wash machine. Besides, could be customized according to your request.
Q: Can the color and appearance be customized?
A: Yes, of course, they could be customized, just tell me what color you need, and the drawing of the appearance, we could do according to your request.
Q: Can I put my brand name on machine instead of your brand name?
A: Yes, we could stick your brand name on the machines according to your request.
Q: What is the delivery time?
A: Our lead time is 10-15 days once get the advanced payment , according to which type you need.
Q: What about the foundation? How long will it take?
A: We could provide the drawing of the foundation, it needs around 5 days.
Q: How to install the machine? And how to do daily maintenance?
A: We could provide the installation drawing and guided installation video. We could provide the maintenance manual to you.
Q: How about the warranty time and sales-after service?
A: Our machine warranty time: 3 years ( 50000 times ), in warranty time, if the machine have any question, we could provide the parts free of charge.
