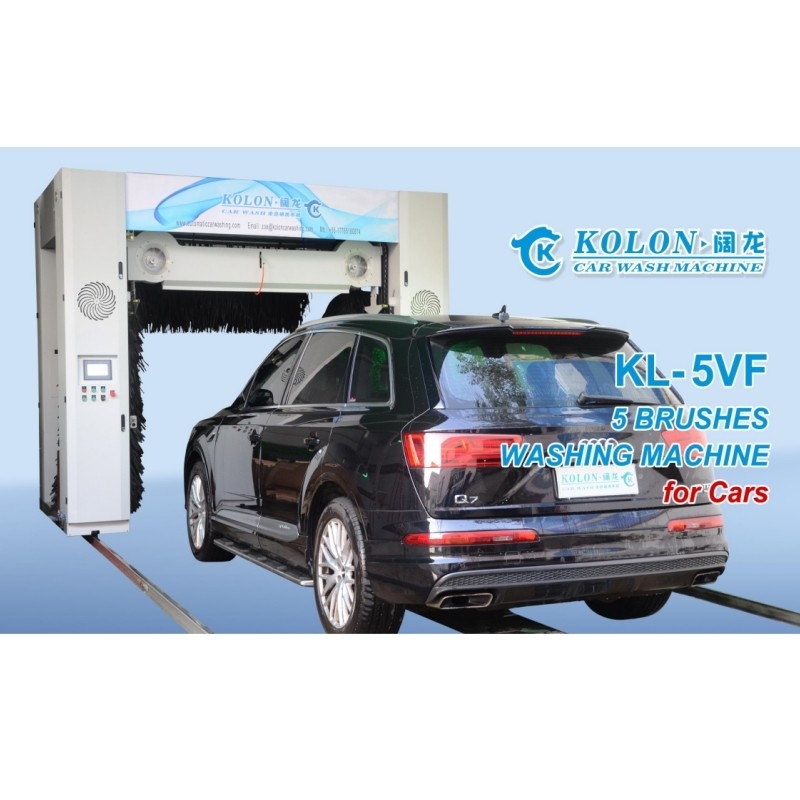

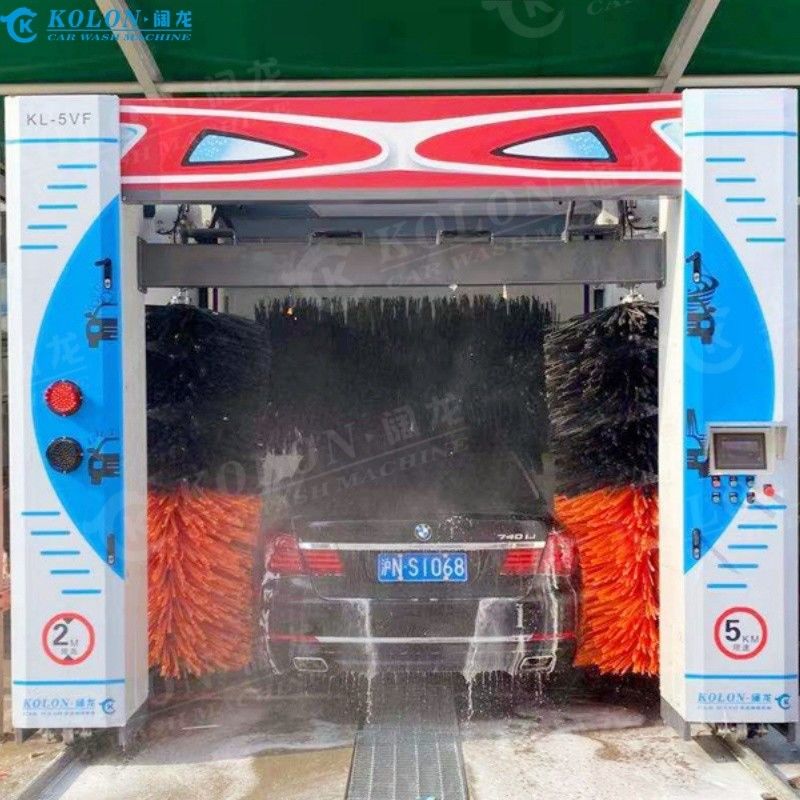

Automatic Car Washing Machine Description :
The KL-5VF car wash equipment features high-pressure water system and can clean deep stains to meet different customer requirements. This soft touch car wash machine utilizes soft brushes, which can quickly rotate and move in various directions to remove contaminations on the surface during operation.
Automatic Car Washing Machine Features :
♦ The welding-free frame is made of hot dip galvanized steel which makes it quite durable andcorrosion resistant.

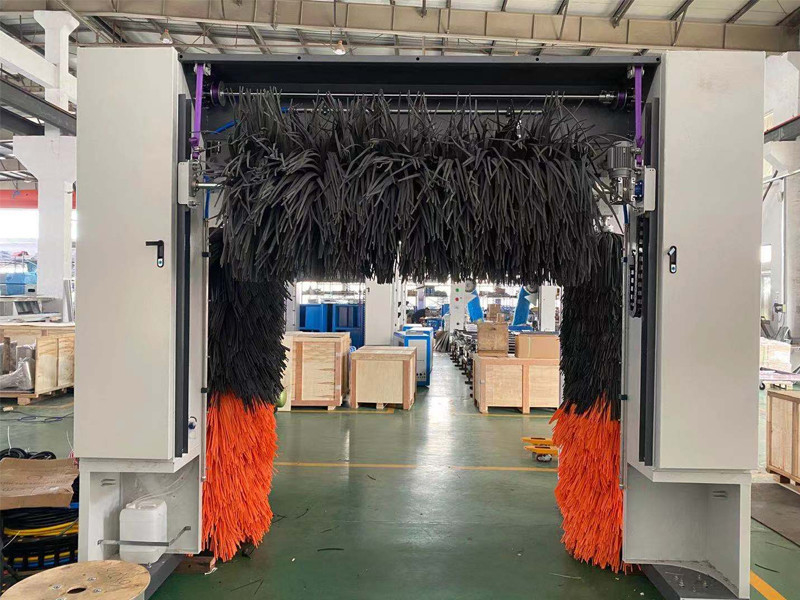

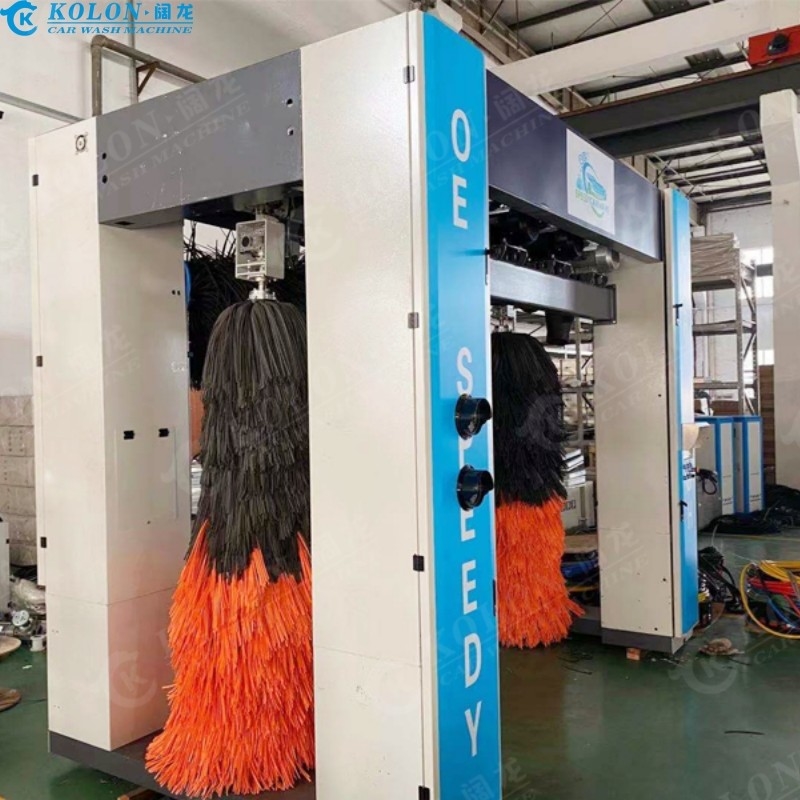

♦ The machine is with 5 brushes.1 top brush, 2 side brushes and 2 wheel brushes that can wash the car completely.
♦ This machine is equipped with 4drying motors that can ensure drying effect.
♦ The combination of automobile detergent and brush washing could remove the contamination on the surface more effectively.Hydrophobic Wax improves drying effect.
♦ Detergent application: Specialized detergents are applied to help break down and remove tough stains and grime.
Specification:
| Warranty | 3 years, man-made damage excluded |
| Machine Size | 3.5*2.2*2.9M(L*W*H) |
| Foundation Size: | 110*3.7*3.2M(L*W*H) |
| Site Requirements | Ground hardening |
| Proportioning machine size | integrating with the machine |
| Wire requirements | three-phase four wire 18KW |
| Air pressure | 2-5 BAR |
| Max washing height | 2000mm |
| Max washing width | 2200mm |
| Max washing length | 5500mm |
| Power needed | 380V/20.5KW |
| Running power | Air-dry power 12KW(4PCS*3KW) Siemens motor |
| Cleaning working power:8.5kw | |
| Water Consumption | 80-100L/car |
| Washing Time | 3-5mins/car |
| Power Consumption | 0.5-1kwh/car |
| Machine weight | 2400Kg/18.5CMB |
| Total Power | 380V/20.5KW |
| Washing liquid Consumption | 50ml/car |
| Water wax consumption | 50ml/car,Controllable |
| Applicable vehicle type | car,van,commercial vehicle |
| Water pressure requirements | 1.4-3kgs tap-water pressure; 6-minute diameter water pipe flow >40L/min |
| Rail | 2pcs (6m) |
| Framework | 1 set |
| Washing pressure | 30-50KG |
| Standard car wash mode | ● |
| Washing Quantity count | ● |
| Fine car Wash Mode | ● |
| Operation permission setting | ● |
| Fully automatic car wash mode | ● |
| Fault self-test function | ● |
| LED indicating system | ● |
| Mirror cleaning | ● |
| Automatic liquid proportioning system | ● |
| One click antifreeze system | ● |
| Chassis tire washing function | ● |
| Oil free function | ● |
| Intelligent three-dimensional detection system | ● |
| Multi liquid reuse function | ● |
| Self-guided parking system | ● |
| Safety alarm function | ● |
| Digital safety anti-collision system | ● |
| Automatic standby function | ● |
| 360 degrees rotary washing | ● |
| Hot dip galvanized frame | ● |
| Washing Detergent | ● |
| Operation console | ● |
| Highlight and dazzle color system (dazzle color type) | ● |
| Leakage protector | ● |
| Water wax coated function | ● |
| Warning system | ● |
| Magic Color Shampoo | ● |
| Voice warning system | ● |
| Built-in automatic air drying | ● |
| Soft water spray | ● |
| Controller | ● |
| Function Equipped | Chassis washing |
| Wheel washing | |
| soft touch car wash machine with 5 brushes | |
| High precision low foam water wax 2-in-1 ratio function | |
| Powerful air drying |
Products Description:
Details:
Air-dry power 12kw( 4PCS * 3KW )Siemens motor
waterproof,dustproof and shakeproof motor and reducer is Siemens brand.It is very durable and energy saving.
The brushes are gentle enough to protect the paint. It can completely wash the car with the use of automoible detergent. The brushes will rotate automatically to shake off the water and impurities at the end of washing.
Using a brush car washer can provide several benefits for your car's appearance and overall maintenance. Here are some key advantages:
Efficient Cleaning: A brush car washer can efficiently remove dirt, grime, and debris from the surface of your car. The bristles of the brush can reach into crevices and hard-to-reach areas, ensuring a thorough cleaning.
Gentle on Paint: High-quality brush car washers are designed with soft bristles that are gentle on your car's paintwork. They minimize the risk of scratching or damaging the exterior surface while still effectively removing dirt.
Time-Saving: Compared to manual washing with a sponge or cloth, a brush car washer allows for quicker and more efficient cleaning. The large brush surface area covers more space with each pass, reducing the time required to clean the entire vehicle.
Versatility: Brush car washers are versatile tools that can be used on various parts of your car, including the body, windows, wheels, and tires. They often come with adjustable handles or extensions, allowing you to reach different areas easily.
Water Conservation: Some brush car washers are designed to be used with a waterless or low-water cleaning solution. This helps conserve water compared to traditional hose-and-bucket methods, making it an environmentally friendly option.
Convenience: Brush car washers are typically lightweight and easy to handle, making the cleaning process more convenient. They are also portable, allowing you to wash your car at home or on the go.
Cost-Effective: Investing in a brush car washer can save you money in the long run. Regularly cleaning your car helps prevent the buildup of dirt, grime, and corrosive substances that can damage the paint and finish. By maintaining your car's appearance, you may reduce the need for expensive detailing or repainting services.
Product packaging
FAQ
Q: Are your car wash machine trader or manufacturer?
A: Yes, we are the car wash machines manufacturer in china. Our brand is Kolonwash. So we have the competitive price, and could provide the spare parts at any time.
Q: What types car wash machines can you produce?
A: We can produce the rollover car wash machine, tunnel car wash machine, touchless car wash machine. Besides, could be customized according to your request.
Q: Can the color and appearance be customized?
A: Yes, of course, they could be customized, just tell me what color you need, and the drawing of the appearance, we could do according to your request.
Q: Can I put my brand name on machine instead of your brand name?
A: Yes, we could stick your brand name on the machines according to your request.
Q: What is the delivery time?
A: Our lead time is 10-15 days once get the advanced payment , according to which type you need.
Q: What about the foundation? How long will it take?
A: We could provide the drawing of the foundation, it needs around 5 days.
Q: How to install the machine? And how to do daily maintenance?
A: We could provide the installation drawing and guided installation video. We could provide the maintenance manual to you.
Q: How about the warranty time and sales-after service?
A: Our machine warranty time: 3 years ( 50000 times ), in warranty time, if the machine have any question, we could provide the parts free of charge.
